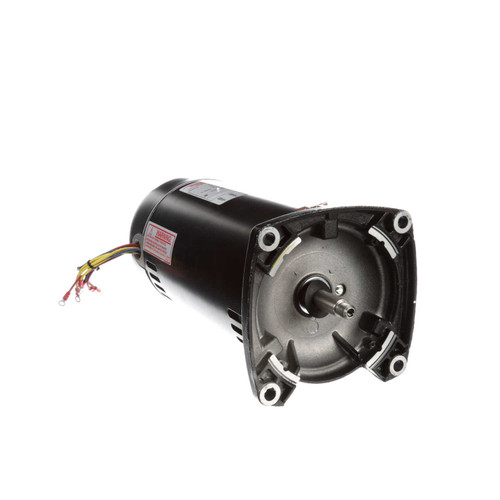

Q3202 Century 2 hp 3450 RPM 48Y Frame 208-230/460V Square Flange Pool Motor

This Century 2 HP three-phase pump motor is designed as a direct replacement for pool pump applications requiring a square flange mount. It features a 48Y frame and operates efficiently at 3450 RPM with dual voltage compatibility.

Key Specifications

• Horsepower: 2 HP
• RPM: 3450
• Voltage: 208-230/460 V, Three Phase, 60 Hz
• Amperage: 8.5/4.25 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 48Y Frame, Square Flange with 4 non-threaded bolt holes
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Reversible (CCW facing shaft is proper rotation)
• Bearings: Sealed Ball Bearings

Product Features & Fitment

This motor includes a square flange mount with four non-threaded bolt holes for secure pump attachment. It does not have built-in overload protection and has a service factor of 1.30. The wiring diagram is conveniently located on the motor nameplate for easy installation. Due to the reversible nature of three-phase power, it is recommended to perform a quick rotation test before final installation to ensure proper counterclockwise rotation when facing the shaft.
