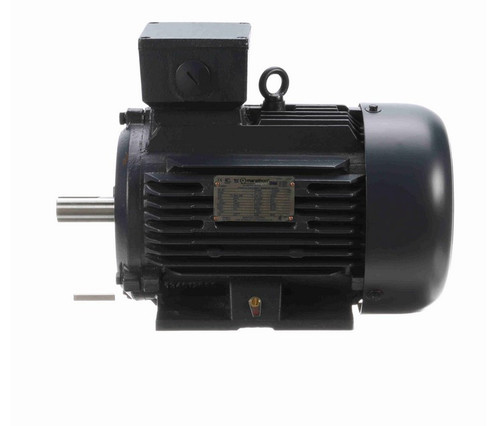

R317 Marathon 1 1/2 hp 01.1 kW 230/460V 1200 RPM 3-Phase 100L Frame TEFC (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
R317 Marathon 1 1/2 hp 01.1 kW 230/460V 1200 RPM 3-Phase 100L Frame TEFC (rigid base) Motor
$812.25
$706.10
SKU
R317
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
1/2 HP
RPM
1200
Phase
Three Phase
Frame
100L
Enclosure
TEFC
Hertz
60 Hz
Amperage
4.6/2.3 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 1 1/2 hp 1.1 kW, 1200 RPM, 4.6/2.3 amps 230/460 Volts 60hz. Three Phase
- Metric 100L Cast Iron frame, Keyed Shaft 28 mm Diameter x 60 mm
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation, B3 Mounting
- 1 Year Manufacture Warranty
This is a metric general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled 100LTFC6586
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 1/2 HP |
| RPM | 1200 |
| Phase | Three Phase |
| Frame | 100L |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 4.6/2.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
