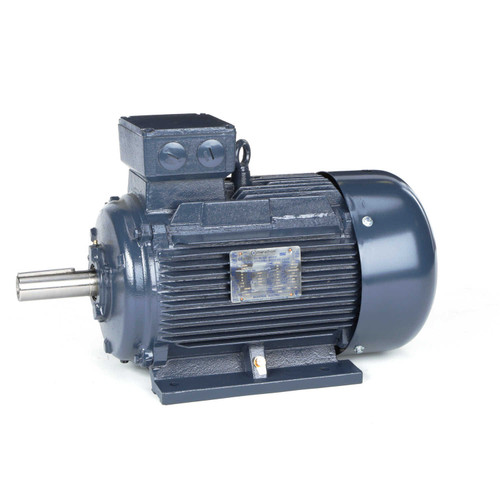

R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor
R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor
R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor
R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor
R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor
R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor
R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor
R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor

Marathon

R333B Marathon 15 hp 11 kw 3600 RPM 160M Frame 230/460V Marathon Electric Metric Motor

(No reviews) Write a Review
$1,937.75
SKU R333B
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Frame 160M
Enclosure TEFC
Amperage 34.0/16.9 Amps
Service Factor 1.15
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 15 hp 11 kw 3600 RPM, 34.0/16.9 amps 230/460 Volts Three Phase Motor

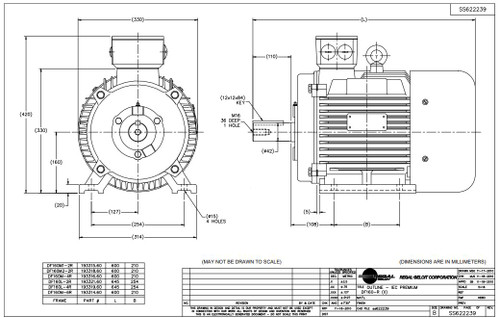

  • IEC 160M Frame keyed shaft 42mm x 110mm
  • TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
  • Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
  • TEFC = Totally Enclosed Fan Cooled; Class F Insulation
  • UL listed and CSA certified
  • 1 Year Manufacture Warranty

12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Oil seals on both drive end and non drive end. Drilled and tapped shaft.

160MTFC6511 Replaces Leeson C160T34FZ59A, 193315.60

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Frame 160M
Enclosure TEFC
Amperage 34.0/16.9 Amps
Service Factor 1.15
Insulation Class Class F
!
