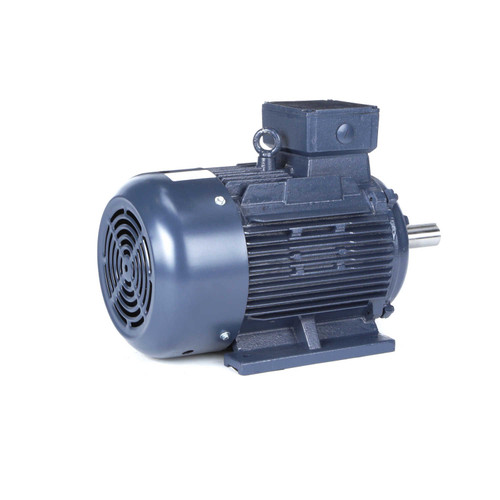

R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor
R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor
R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor
R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor
R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor
R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor
R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor
R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor

Marathon

R336B Marathon 20 hp 15 kw 3600 RPM 160M Frame 230/460V Marathonn Electric Metric Motor

(No reviews) Write a Review
$2,456.34
$2,148.14
SKU R336B
UPC 7.23E+11
Availability Subject to Availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 160M
Enclosure TEFC
Amperage 45.5/22.8 Amps
Service Factor 1.15
Insulation Class Class F
Adding to cart… The item has been added
Description



  • 20 hp 15 kw 3600 RPM, 45.5/22.8 amps 230/460 Volts Three Phase Motor

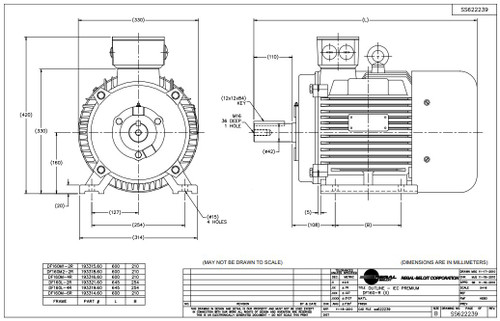

  • IEC 160M Frame keyed shaft 42mm x 110mm
  • TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
  • Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
  • TEFC = Totally Enclosed Fan Cooled; Class F Insulation
  • 1 Year Manufacture Warranty

This is an updated variant of motor R336A. 12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Class F insulation. Oil seals on both drive end and non drive end. Drilled and tapped shaft. CSA file #LR33543, UL file #E57948, Conformite European. TCA0151AE211GAA009

Replaces Leeson C160T34FZ60A, 193318.60

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 160M
Enclosure TEFC
Amperage 45.5/22.8 Amps
Service Factor 1.15
Insulation Class Class F
!
