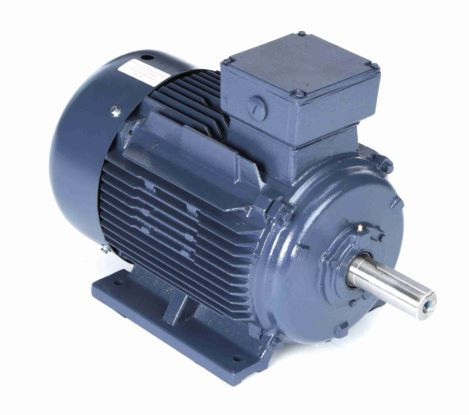

R836 Marathon | 20 hp 15 kw 3600 RPM 160MD Frame 230/460V Electric Metric Motor
R836 Marathon | 20 hp 15 kw 3600 RPM 160MD Frame 230/460V Electric Metric Motor

Marathon

R836 Marathon | 20 hp 15 kw 3600 RPM 160MD Frame 230/460V Electric Metric Motor

(No reviews) Write a Review
$3,110.87
$1,997.55
SKU MR836
UPC 7.23E+11
Availability LIMITED STOCK
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 160MD
Enclosure TEFC
Amperage 45.5/22.8 Amps
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 20 hp 15 kw 3600 RPM, 45.5/22.8 amps 230/460 Volts Three Phase Motor
  • IEC 160MD Frame keyed shaft 42mm x 110mm
  • TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
  • Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
  • TEFC = Totally Enclosed Fan Cooled; Class F Insulation
  • Cast iron frame construction
  • UL listed and CSA certified
  • Motor has Rigid Base with B3/B5 "D-Flange"
  • 1 Year Manufacture Warranty

12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Oil seals on both drive end and non drive end. Drilled and tapped shaft.

TCA0151AE231GAA009 Replaces Leeson C160T34FZ63A, 193351.60
