R393A Marathon | 1 hp 0.75 kW 230/460V 1800 RPM 3-Phase 80D Frame TEFC (rigid base) Motor

R393A Marathon | 1 hp 0.75 kW 230/460V 1800 RPM 3-Phase 80D Frame TEFC (rigid base) Motor

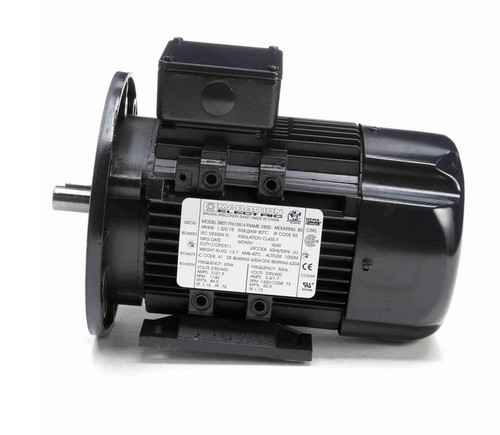

This Marathon R393A motor is a general-purpose, three-phase industrial motor designed for reliable operation in various applications. It replaces the Leeson 192244.00 model and features a totally enclosed fan-cooled (TEFC) design for enhanced durability in demanding environments.

Key Specifications

• Horsepower: 1 hp (0.75 kW)
• RPM: 1800
• Voltage: 230/460 V, 60 Hz
• Amperage: 3.0/1.5 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)

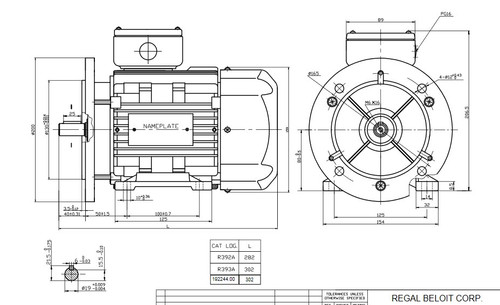

• Frame / Diameter: Metric 80D Cast Aluminum frame
• Shaft Dimensions: 19 mm diameter x 40 mm length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount suitable for stable installation and is reversible to accommodate different rotational requirements. The shaft includes a keyway for secure coupling. It comes with Class F insulation and supports B3/B5 mounting configurations. Wiring diagrams are provided on the motor nameplate for easy setup.

Cross Reference

• Leeson 192244.00

Warranty

1 Year Manufacturer Warranty
