RS-1 Relay & Controls | 1.5 hp - 2 hp Electric Motor Reversing Drum Switch - Position = Maintained

RS-1 Relay & Controls | 1.5 hp - 2 hp Electric Motor Reversing Drum Switch - Position = Maintained

The RS-1 is a durable electric motor reversing drum switch designed for motors up to 2 hp. It serves as a reliable replacement compatible with various industrial motor control applications requiring maintained position switching.

Key Specifications

• Horsepower: Up to 1.5 hp @ 115V Single Phase, up to 2 hp @ 230V Single Phase, up to 2 hp @ 230V 3 Phase, up to 1 hp @ 460V 3 Phase
• Voltage: 115V, 230V, 460V
• Rotation: Maintained position
• Dimensions: Width 2.5", Height 4", Depth 4.5"

Product Features & Fitment

This switch features a plastic handle and is made in the USA. It is recommended to be installed by a qualified technician familiar with electric motor wiring. Installation is easier with motors that have wire leads rather than terminal boards. The RS-1 is cross-compatible with several models including Dayton/Grainger 2X441, GE CR 102 A1, MSC Industries 63748875, McMaster Carr 7065 K23, Cutler Hammer H-268, Square D AG-2, and Furnas R-44. Installation support or instructions are not provided.

Cross Reference

• Switch is comparable to models below
• Dayton/Grainger 2X441
• GE CR 102 A1, CR102A1
• MSC Industries 63748875
• McMaster Carr 7065 K23, 7065K23
• Cutler Hammer H-268
• Square D AG-2
• Furnas R-44

Warranty

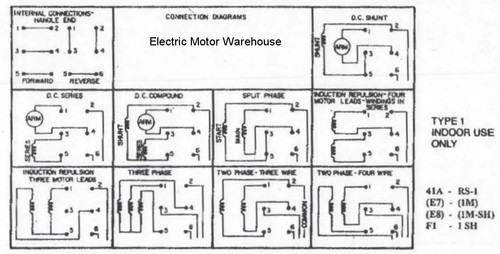

• Wiring Diagram
• Catalog Page
