RS-1-SH Relay & Controls | 1.5 hp - 2 hp Electric Motor Reversing Drum Switch - Position = Maintained

RS-1-SH Relay & Controls | 1.5 hp - 2 hp Electric Motor Reversing Drum Switch - Position = Maintained

The RS-1-SH is a heavy-duty reversing drum switch designed for electric motors ranging from 1.5 to 2 horsepower. It serves as a reliable replacement switch compatible with various motor voltages and phases, ideal for controlling motor direction in industrial applications.

Key Specifications

• Horsepower: Up to 1.5 hp @ 115 V Single Phase, up to 2 hp @ 230 V Single Phase, up to 2 hp @ 230 V 3 Phase, up to 1 hp @ 460 V 3 Phase
• Voltage: 115 V, 230 V, 460 V
• Rotation: Maintained position
• Dimensions: Width 2.55", Height 4", Depth 4.5"

Product Features & Fitment

This switch features a durable steel handle and is manufactured in the USA. It is recommended to be installed by a qualified technician familiar with electric motor wiring. For ease of installation, motors with wire leads are preferred over those with terminal boards. The RS-1-SH is cross-referenced with Dayton/Grainger model 4UYF1 and GE models CR 102 A1 and CR102A1. Installation support or instructions are not provided.

Cross Reference

• Switch is comparable to models below
• Dayton/Grainger 4UYF1
• GE CR 102 A1, CR102A1

Warranty

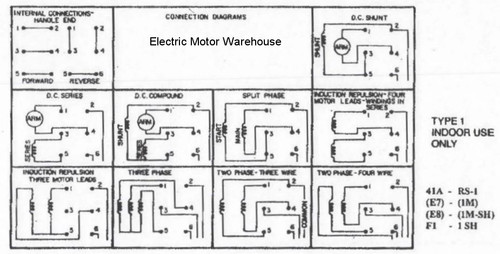

• Wiring Diagram
• Catalog Page
