RS-2 Relay & Controls | 1.5 hp - 2 hp Electric Motor Reversing Drum Switch - Position = Maintained

SKU:
RS-2
Availability:
IN STOCK
Weight:
2.00 LBS
Shipping:
$11.95 (Fixed Shipping Cost)
Was: $162.99
Now: $154.99
Adding to cart… The item has been added
  • Rated up to 1.5hp @ 115 Volts Single Phase
  • Rated up to 2 hp @ 230 Volts Single Phase
  • Rated up to 2 hp @ 230/460 Volts 3 Phase
  • Dimensions: W 3.5" H 5" D 5.5"
  • Position = Maintained
  • Plastic Handle
  • Made in the USA

Ratings above mean this switch can handle up to that HP. So if you have a motor with a HP rating at or below this, then this is the correct switch.

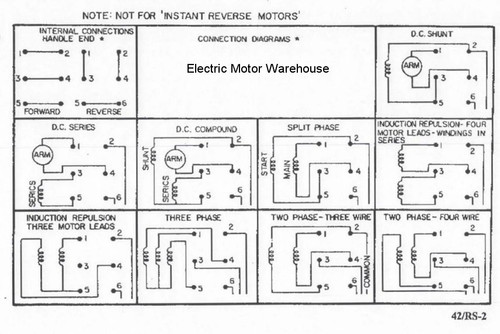

Note: We recommend this control only be installed by a qualified technician that understands how electric motors are wired. Motor must have wire leads for connections. If motor only has a terminal board it will be very difficult to wire the switch. This installation would most likely require a skilled electric motor technician. We will not be able to assist with installation help or instruction.

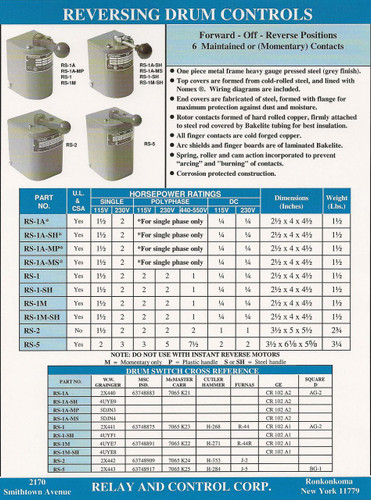

Cross Reference: Switch is comparable to models below
Dayton/Grainger 2X442
McMaster Carr 7065K24, 7065 K24
Cutler Hammer H-353
Furnas J-2
MSC Industries 63748909

Notice: This item has been restricted by Canada, we cannot sell or ship this product into Canada
