TECO WESTINGHOUSE

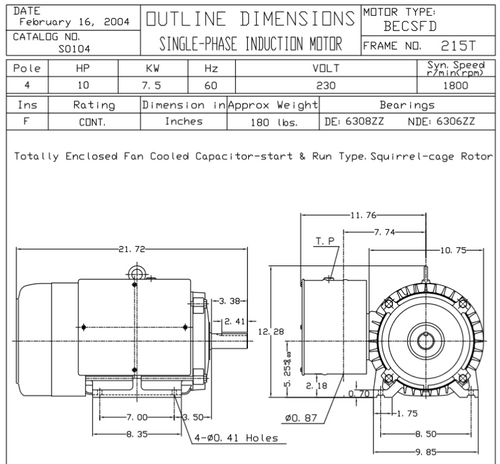

S0104 TECO-Westinghouse 10 HP 1800 RPM 215T Frame 230V TEFC Cast Iron 1-Ph Motor
(No reviews)
Write a Review
Write a Review
TECO WESTINGHOUSE
S0104 TECO-Westinghouse 10 HP 1800 RPM 215T Frame 230V TEFC Cast Iron 1-Ph Motor
$1,535.04
SKU
S0104
Shipping
Calculated at Checkout
Voltage
230V
Horsepower
10 HP
RPM
1800
Phase
Single Phase
Frame
215T
Enclosure
TEFC
Hertz
60 Hz
Amperage
48.0 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class F
TECO WESTINGHOUSE, FARM DUTY ELECTRIC MOTOR
- 10 hp 1800 RPM, 1-Speed, 48.0 amps, 230 Volts 60 Hz.
- 215T Cast Iron Frame, Shaft: 1 3/8" x 3 3/8" with Key
- Rotation = Reversible, Overload Protector: Manual
- Service Factor = 1.15, Insulation Class F
- Ball Bearing, Capacitor Start - PSC Run
- 1 Year Manufacture Warranty
Farm Duty Motor. Totally Enclosed Fan Cooled (TEFC)
| Voltage | 230V |
|---|---|
| Horsepower | 10 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 215T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 48.0 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class F |
