S10P1AC Nidec 10 hp 3600 RPM 215TC Frame 208-230/460V TEFC 3-Phase Electric Motor

SKU:
S10P1AC
Weight:
131.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $899.00
Now: $803.10
  • 10 hp 3600 RPM, 26.5-23.5/11.7 amps 208-230/460 Volts 60 Hz Three Phase Motor

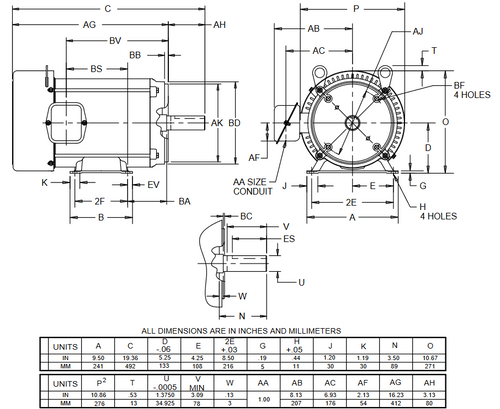

  • NEMA 215TC frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DJ86
