S112 Marathon 1/2 hp (1 speed) 115/230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

S112 Marathon 1/2 hp (1 speed) 115/230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

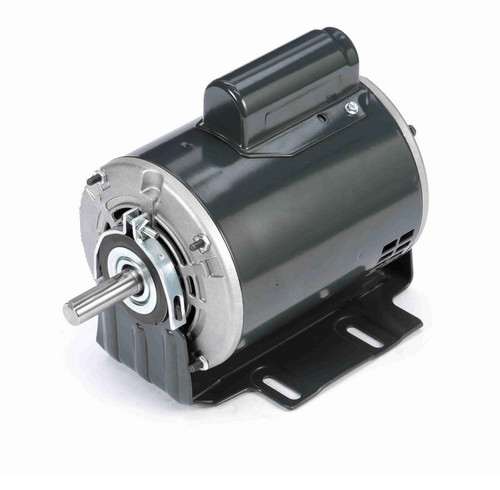

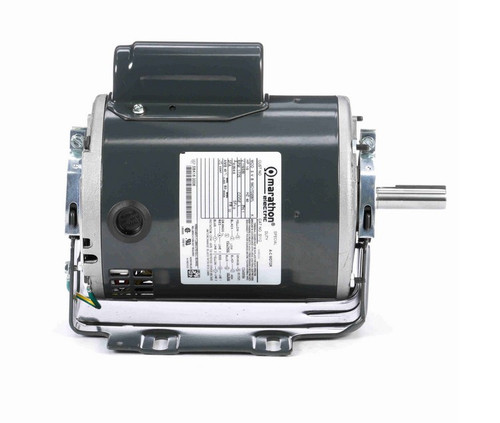

The S112 Marathon motor is a reliable 1/2 horsepower, single-speed motor designed for blower applications in HVAC systems. It is suitable for replacing motors requiring a NEMA 56 frame and capacitor start, providing efficient air movement in residential or commercial buildings.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/230V
• Amperage: 9.1/4.5 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame

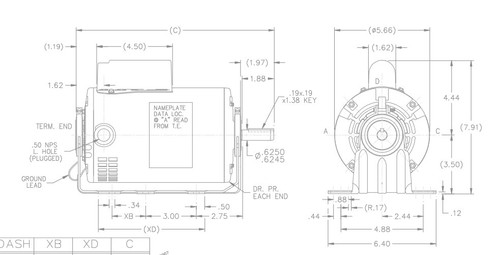

• Shaft Dimensions: 1 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for either vertical or horizontal shaft orientation. It includes a capacitor start for reliable startup performance and utilizes Class B insulation for durability. Thermal protection is not included, so external safeguards may be required depending on the application.

Warranty

1 Year Manufacturer Warranty
