SPT0014 TECO-Westinghouse 1 HP 1800 RPM 143T Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

SPT0014 TECO-Westinghouse 1 HP 1800 RPM 143T Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

This TECO-Westinghouse general purpose electric motor is designed for HVAC applications and serves as a reliable replacement for similar 1 horsepower motors. It features a totally enclosed fan-cooled (TEFC) design to ensure durability in demanding environments.

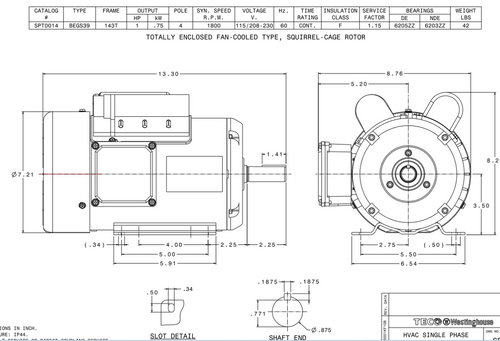

Key Specifications

• Horsepower: 1 HP
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 9.1/4.5 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: 143T Rolled Steel
• Shaft Dimensions: 7/8" x 2 1/4" with Key
• Rotation: Reversible
• Bearings: Ball Bearing

Product Features & Fitment

This single-phase motor operates at a single speed and includes a capacitor start/run system for efficient performance. It comes equipped with an automatic overload protector and insulation class F for enhanced reliability. The motor’s 143T rolled steel frame and reversible rotation make it suitable for a variety of HVAC mounting configurations.

Warranty

1 Year Manufacturer Warranty
