SPT0024 TECO-Westinghouse 2 HP 1800 RPM 145T Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

SPT0024 TECO-Westinghouse 2 HP 1800 RPM 145T Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

This TECO-Westinghouse general purpose electric motor is designed for HVAC applications, offering reliable performance and compatibility as a replacement motor. It features a totally enclosed fan-cooled (TEFC) design suitable for various industrial environments.

Key Specifications

• Horsepower: 2 HP
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 17.2/8.6 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)

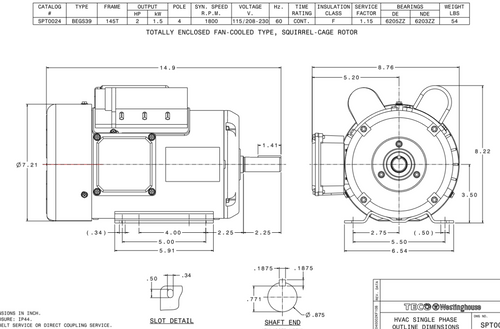

• Frame / Diameter: 145T Rolled Steel
• Shaft Dimensions: 7/8" diameter x 2 1/4" length with key
• Rotation: Reversible
• Bearings: Ball Bearing

Product Features & Fitment

This single-phase motor includes a capacitor start/run design and an automatic overload protector for enhanced durability and safety. Its 145T rolled steel frame provides robust construction, while the reversible rotation allows flexible installation options. The motor’s insulation class F and service factor of 1.15 ensure reliable operation under varying load conditions.

Warranty

1 Year Manufacturer Warranty
