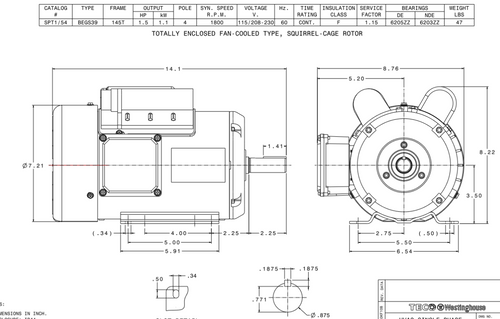

SPT1/54 TECO-Westinghouse 1 1/2 HP 1800 RPM 145T Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

SPT1/54 TECO-Westinghouse 1 1/2 HP 1800 RPM 145T Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

The TECO-Westinghouse SPT1/54 is a general-purpose, single-phase electric motor designed for HVAC applications. It serves as a reliable replacement motor featuring a totally enclosed fan-cooled (TEFC) design for durability in various environments.

Key Specifications

• Horsepower: 1 1/2 HP
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 12.8/6.4 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: 145T Rolled Steel
• Shaft Dimensions: 7/8" diameter x 2 1/4" length with key
• Rotation: Reversible
• Bearings: Ball Bearing

Product Features & Fitment

This motor features a capacitor start/run design with an automatic overload protector for enhanced operational safety. Its 145T rolled steel frame and reversible rotation allow for versatile installation in HVAC systems requiring a robust and efficient motor solution.

Warranty

1 Year Manufacturer Warranty
