Stearns
105601100BPF Stearns Brake Assembly
$586.62
$544.64
SKU
105601100BPF
UPC
6.63E+11
Availability
2-3 WEEK LEAD TIME
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED FOR A LIMITED TIME
Voltage
115/208/230V
RPM
5000

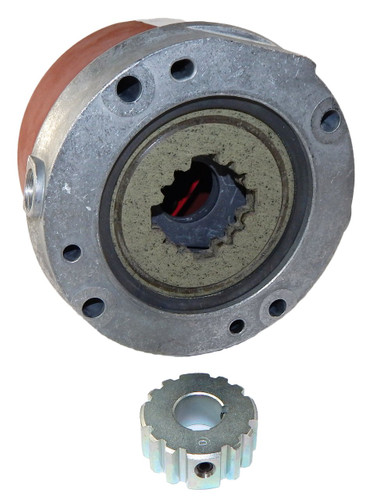

105601100BPF Stearns Brake Assembly
The 105601100BPF is a Series 56000 Stearns solenoid-actuated spring-set disc brake designed for electric motor applications requiring reliable stopping power. It replaces compatible NEMA 2 brakes and is ideal for horizontal mounting in industrial environments.
Key Specifications
- Voltage: 115/208-230V
- Torque: 3 Foot Pounds
- Shaft Dimensions: 5/8" Hub Bore
- Enclosure: IP23 (NEMA 2)
- Rotation: Horizontal Mount
- Maximum Speed: 5000 RPM
Product Features & Fitment
This brake features manually-adjusted torque with a side manual release lever that includes an automatic reset function. It is equipped with Class B coil insulation and a stamped steel housing. The lead wire length is 24 inches. Brakes are built to order with an approximate one-week lead time for shipment. For applications not listed, contact customer support for assistance with other brake combinations.
Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED FOR A LIMITED TIME |
| Voltage | 115/208/230V |
| RPM | 5000 |
