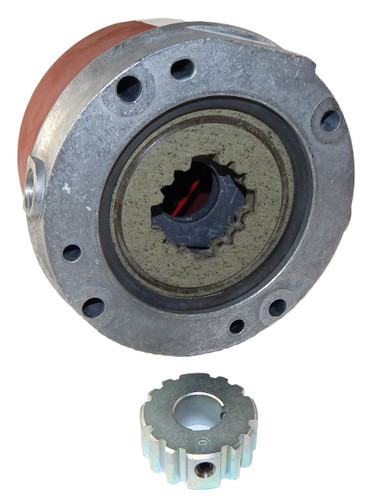

105602100BPF Stearns Brake Assembly
The 105602100BPF is a Series 56000 Stearns solenoid actuated spring-set disc brake designed for electric motor applications requiring reliable stopping power. It replaces compatible NEMA 2 brakes and is ideal for horizontal mounting in industrial motor and HVAC systems.
Key Specifications
- Voltage: 115/208-230V
- Enclosure: IP23 (NEMA 2)
- Shaft Dimensions: 5/8" Hub Bore
- Torque: 6 Foot Pounds
- RPM: Maximum 5000 (Horizontal Mount)
- Coil Insulation: Class B
Product Features & Fitment
This brake features manual wear adjustment with an adjustable torque setting and a side manual release lever with automatic reset. It includes a 24-inch lead wire and a stamped steel housing for durability. The brake is spring-set and electrically released, designed for horizontal mounting and built to order with an approximate one-week lead time. If your specific brake model is not listed, contact the supplier for assistance with over 100,000 available brake combinations.
