105603100BPF Stearns Brake Assembly

105603100BPF Stearns Brake Assembly

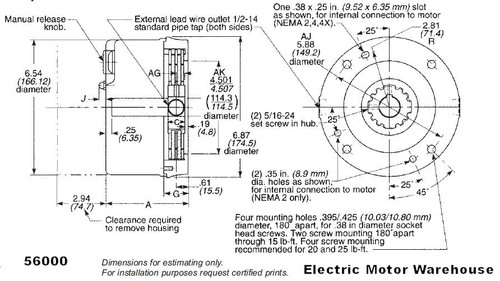

The 105603100BPF is a Series 56000 Stearns solenoid-actuated spring-set disc brake designed for electric motor applications requiring reliable stopping power. It features manual torque adjustment and wear compensation, suitable for horizontal mounting configurations.

Key Specifications

• Voltage: 115/208-230V
• Enclosure: IP23 (NEMA 2)
• Shaft Dimensions: 5/8" Hub Bore
• RPM: Maximum 5000 RPM (horizontal mount)
• Torque: 10 Foot Pounds

Product Features & Fitment

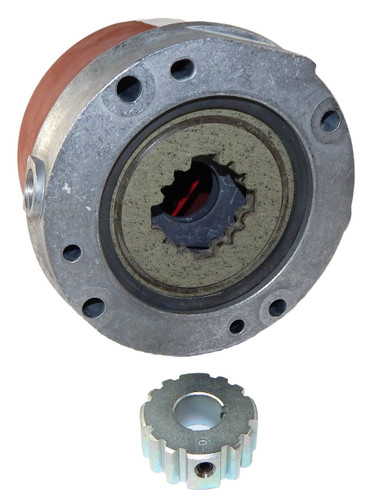

This brake assembly includes a side manual release lever with automatic reset and Class B coil insulation. It comes with a 24-inch lead wire and a stamped steel housing. The brake is manually adjusted for wear and torque, and is designed for horizontal mounting. Lead time for shipment is approximately one week.
