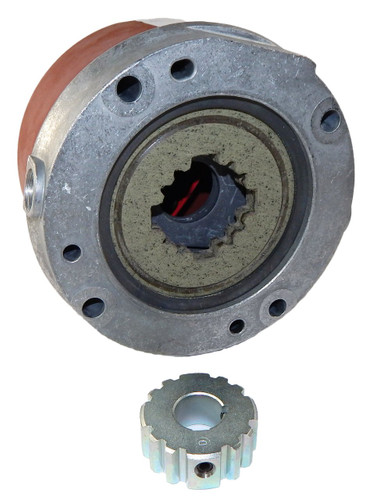

105604200BQF Stearns Brake Assembly

105604200BQF Stearns Brake Assembly

The 105604200BQF is a Series 56000 Stearns solenoid-actuated, spring-set disc brake designed for industrial motor applications requiring reliable stopping power. It is manually adjustable and suitable for horizontal mounting, replacing or upgrading existing NEMA 4 brake assemblies.

Key Specifications

• Voltage: 208-230/460 V, 3-Phase
• Torque: 15 ft-lb
• Shaft Dimensions: 5/8" hub bore
• Rotation: Horizontal mount
• Enclosure: IP23 (formerly NEMA 2)
• Coil Insulation Class: B
• Maximum Speed: 5000 RPM

Product Features & Fitment

This brake features a manually adjusted torque setting with a side manual release lever and automatic reset for ease of operation. It includes a 24-inch lead wire and a stamped steel housing. The spring-set brake is electrically released and built to order with an approximate one-week lead time for shipment. For applications not listed, contact customer support for assistance with over 100,000 brake combinations.

Warranty

• Stearns Catalog
• Install Manual
• Parts Manual
