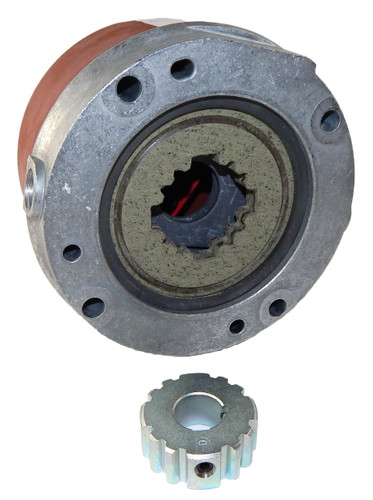

- Series 56000 Disc Brakes, NEMA 4, 208-230/460, 3-Phase
- Solenoid Actuated Spring-Set Brakes (Manually-Adjusted)
- 25 Foot Pound Torque, 5/8" Hub Bore
- Horizontal Mount, Class B Coil Insulation
- Lead time to ship = 1 week approximately
Stearns Brakes Electric Motor Brake. If you do not see your brake listed, call us or send an email and we will be glad to assist you. There are over 100,000 brake combinations, we have only listed a few basic brakes. Brakes are built to order at the factory, lead time to ship is normally one week for this brake. Adjustable Torque, Manual Wear Adjustment, Side Manual Release Lever with, automatic Reset, Class B Coil Insulation, Spring-Set Electrically Released, Lead Wire Length: 24 inches, Maximum Speed: Horizontal 5000 RPM, Enclosure: IP23 (formerly referred to by, Stearns Brakes as NEMA 2), Stamped Steel Housing. Certified: CSA File LR-6254. One year manufacture warranty for manufacturing defects. 25% restocking fee on brakes returned as ordered in error or incorrectly ordered.
