T12C2J4 Nidec 1/2 hp 1800 RPM 115/208-230V 48 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

T12C2J4 Nidec 1/2 hp 1800 RPM 115/208-230V 48 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

SKU:
T12C2J4
Availability:
Subject to Availability
Weight:
23.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $408.00
Now: $364.20
Adding to cart… The item has been added
  • 1/2 hp 1800 RPM, 9.0/4.3-4.5 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
  • NEMA 48 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.15 Overload protection = None
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

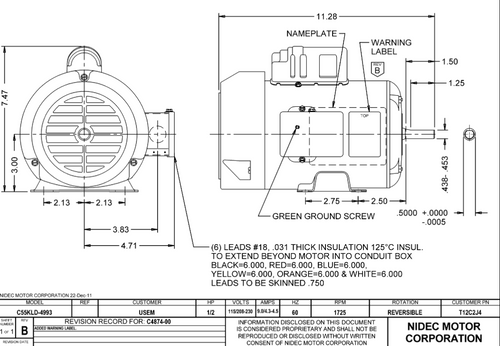

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C055KLD4993015B

!
