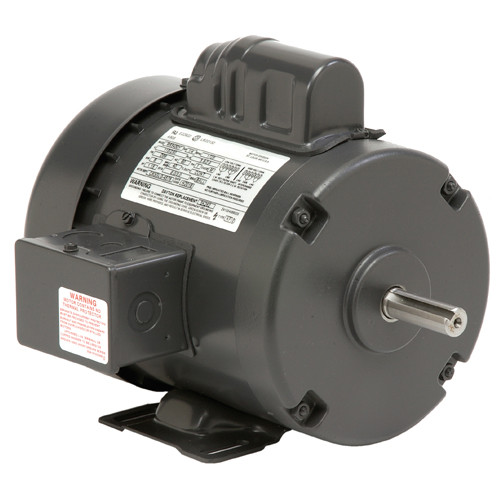

T14CM2J4 Nidec 1/4 hp 1800 RPM 115/208-230V 48 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
T14CM2J4 Nidec 1/4 hp 1800 RPM 115/208-230V 48 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
T14CM2J4 Nidec 1/4 hp 1800 RPM 115/208-230V 48 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
T14CM2J4 Nidec 1/4 hp 1800 RPM 115/208-230V 48 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

Nidec

T14CM2J4 Nidec 1/4 hp 1800 RPM 115/208-230V 48 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

(No reviews) Write a Review
$448.50
$400.66
SKU T14CM2J4
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/4 HP
RPM 1800
Frame 48
Enclosure TEFC
Hertz 60 Hz
Amperage 3.3 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/4 hp 1800 RPM, 6.6/2.9-3.3 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
  • NEMA 48 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.15 Overload protection = Manual
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C055KHW4948015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/4 HP
RPM 1800
Frame 48
Enclosure TEFC
Hertz 60 Hz
Amperage 3.3 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
