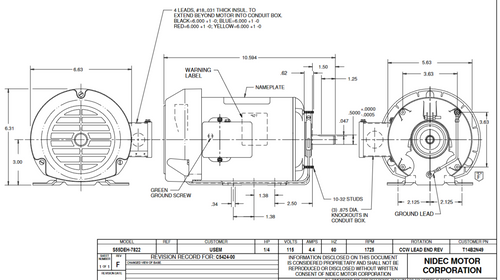

T14B2N49 Nidec 1/4 hp 1800 RPM 115V 1-Speed 48 Frame (Resilient Base) 1-Speed TEFC Blower Motor

T14B2N49 Nidec 1/4 hp 1800 RPM 115V 1-Speed 48 Frame (Resilient Base) 1-Speed TEFC Blower Motor

This Nidec blower motor is designed for commercial and industrial ventilation systems, providing reliable 1/4 horsepower performance at 1800 RPM. It serves as a direct replacement for motors requiring a 48 frame resilient base configuration with a totally enclosed fan-cooled (TEFC) design.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115 V
• Amperage: 4.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 48 Frame, Rolled Steel with Cast Aluminum End Bells
• Shaft Dimensions: 1/2" Diameter x 1 1/2" Length
• Bearings: Ball Bearings
• Rotation: Reversible

Product Features & Fitment

The motor features a resilient base for stable mounting and includes a keyed shaft for secure coupling. It utilizes Class B insulation and split-phase operation at 60 Hz. Wiring diagrams are provided on the motor nameplate to assist with installation. This motor does not include overload protection and has a service factor of 1.0.

Warranty

1 Year Manufacturer Warranty
