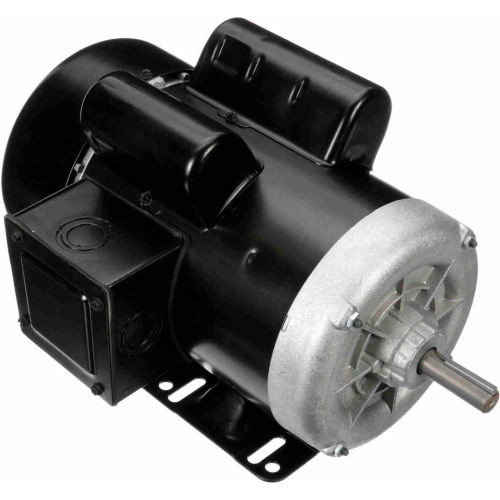

T2CM1JH Nidec 2 hp 3600 RPM 115/208-230V 56H Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
T2CM1JH Nidec 2 hp 3600 RPM 115/208-230V 56H Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
T2CM1JH Nidec 2 hp 3600 RPM 115/208-230V 56H Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
T2CM1JH Nidec 2 hp 3600 RPM 115/208-230V 56H Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

Nidec

T2CM1JH Nidec 2 hp 3600 RPM 115/208-230V 56H Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

(No reviews) Write a Review
$918.85
$820.41
SKU T2CM1JH
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 9.7 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 3600 RPM, 19.5/10.8-9.7 amps 115/208-230V Volts 60 Hz Capacitor Start/Run Motor
  • NEMA 56H Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = Manual
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063DAC1596015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 9.7 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
