T32C1JH Nidec 1 1/2 hp 3600 RPM 115/208-230V 56H Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

SKU:
T32C1JH
Weight:
32.00 LBS
Shipping:
Calculated at Checkout
$520.34
  • 1 1/2 hp 3600 RPM, 14.6/8.1-7.4 amps 115/208-230V Volts 60 Hz Capacitor Start/Run Motor

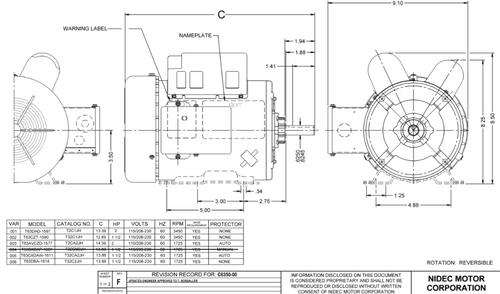

  • NEMA 56H Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063CZT1590015B
