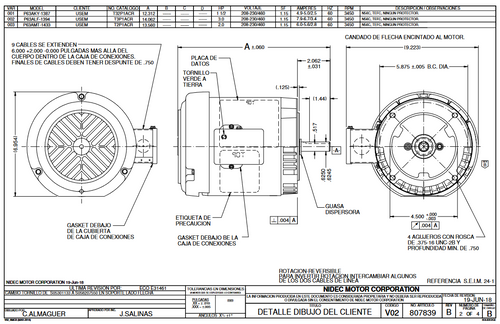

T3P1ACR Nidec 3 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
T3P1ACR Nidec 3 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
$546.25
$487.72
SKU
T3P1ACR
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230/460V
Horsepower
3 HP
RPM
3600
Phase
Three Phase
Frame
56C
Enclosure
TEFC
Hertz
60 Hz
Amperage
6.7/3.4 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
T3P1ACR Nidec 3 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
This Nidec 3 horsepower, 3600 RPM three-phase electric motor is designed for general-purpose industrial applications requiring reliable and efficient performance. It is a direct replacement motor featuring a totally enclosed fan-cooled (TEFC) design suitable for various equipment setups.
Key Specifications
- Horsepower: 3 hp
- RPM: 3600
- Voltage: 208-230/460 V
- Amperage: 7.9-6.7/3.4 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 56C frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Bearings: Ball bearings
- Rotation: Reversible
Product Features & Fitment
This motor features a rigid base mount and Class F insulation for durability and thermal protection. It includes a wiring diagram on the motor nameplate to facilitate proper electrical connections. The general-purpose C-face design allows compatibility with a wide range of industrial equipment. Note that overload protection is not included.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 208/230/460V |
| Horsepower | 3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 6.7/3.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
