U3P1DFC Nidec 3 hp 3600 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

U3P1DFC Nidec 3 hp 3600 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec 3 horsepower, 3600 RPM electric motor is designed for general-purpose industrial applications requiring a reliable three-phase power source. It is a suitable replacement for motors with similar specifications and features a totally enclosed fan-cooled (TEFC) design for enhanced durability in various environments.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 8.1-7.2/3.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

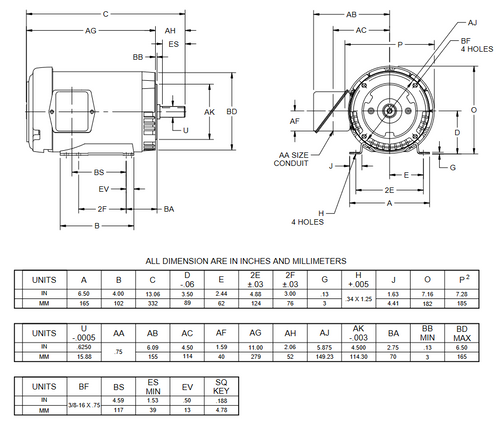

• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is reversible and equipped with Class F insulation for thermal protection. Wiring diagrams are provided on the motor nameplate to facilitate proper electrical connections.

Warranty

1 Year Manufacturer Warranty
