U2P1DFC Nidec 2 hp 3600 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

U2P1DFC Nidec 2 hp 3600 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec 2 horsepower, 3600 RPM three-phase electric motor is designed for general-purpose industrial applications requiring reliable performance. It is a direct replacement for motors with similar specifications and features a totally enclosed fan-cooled (TEFC) design for enhanced durability.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 5.4-4.9/2.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

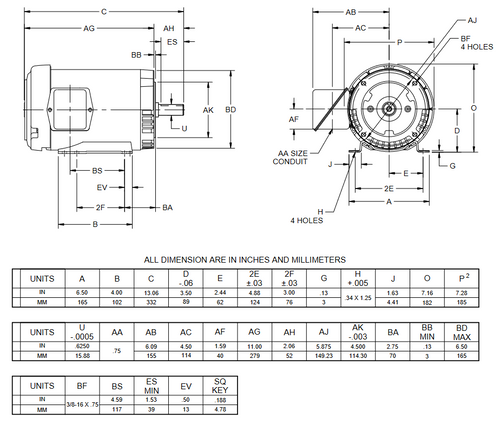

• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Bearings: Ball bearings
• Rotation: Reversible

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and a service factor of 1.25. Wiring diagrams are conveniently located on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
