TEQ125 US Motors 1 hp 3450 RPM 48Y 115/230V (TEFC) High Efficiency Switchless Pool Pump Motor

SKU:
TEQ125
Availability:
Please email for availability
Weight:
27.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $340.00
Now: $303.80

CURRENTLY OUT OF STOCK

  • 1 to 1 1/4 HP 3450 RPM 48Y, 11.0/5.9-5.5 amps, 115/208-230V 60hz. Switchless single phase
  • NEMA 48Y finned aluminum frame (no base), 1/2" diameter threaded stainless steel shaft
  • Overload Protection: Auto. Class B insulation, 5.5" body dia.
  • Non-Reversible - CCW Rotation facing the shaft
  • Square Flange Mount (1081 design), Ball Bearings, Totally Enclosed Fan-Cooled (TEFC)

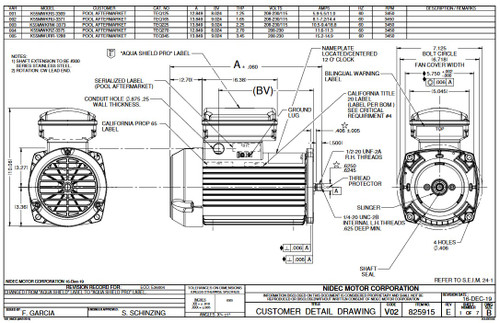

Swimming pool pump motor. Commonly found on in-ground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor. Sealed ball bearings. Wiring diagram on motor name plate. 1 year warranty. Model T055CRR1609013J

Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect.
Please check your local and State codes to comply with their requirements for replacement pump motors.
Click here to help answer more questions


ATTENTION: Shipping Restrictions Apply!
California:
 This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.

Please know your State, Local Laws and Building Codes for replacement pump motors to comply with their regulations.

To comply with current and upcoming regulations we recommend upgrading now to a variable speed motor.
We recommend using Century EVQ130 1.30THP Variable Speed Motor

Click here for Inground Variable Speed Pumps
