- 1/2 hp 1800 RPM, 1.8-1.7/0.9 amps 208-230/460 Volts 60/50 Hz Three Phase Motor

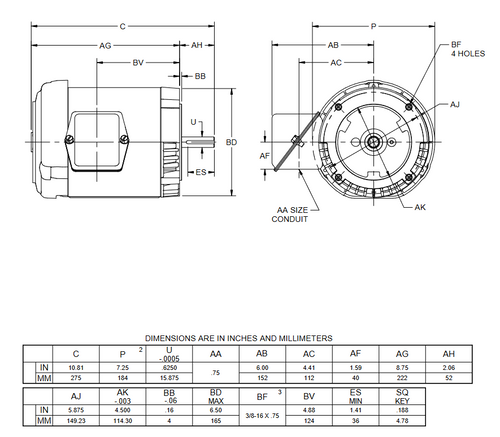

- NEMA 56C frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. F046
