U15P1AF Nidec 15 hp 3600 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor

SKU:: U15P1AF
UPC:
Weight:: 120.00 LBS
Width:: 22.00 (in)
Height:: 17.00 (in)
Depth:: 14.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 208/230/460V
Horsepower:: 15 HP
RPM:: 3600
Phase:: Three Phase
Frame:: 215T
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 35.0/17.4 Amps
Bearings:: Ball Bearings
Service Factor:: 1.25
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $1,537.55

Now: $1,373.22

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

U15P1AF Nidec 15 hp 3600 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec 15 horsepower, 3600 RPM three-phase electric motor is designed for general-purpose industrial applications requiring reliable and efficient performance. It is suitable for replacing or upgrading motors with similar specifications in various machinery and equipment.

Key Specifications

Horsepower: 15 hp
RPM: 3600
Voltage: 208-230/460 V
Amperage: 40.0-35.0/17.4 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 215T

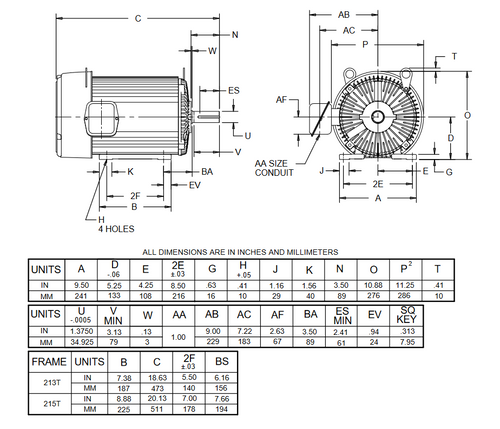

Shaft Dimensions: 1 3/8" Diameter x 3 1/2" Length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and designed for three-phase power supply at 60 Hz. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.
