U15V2B Nidec 15 hp 1800 RPM 254T (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

180.00 LBS
Calculated at Checkout
  • 15 hp 1800 RPM, 37/18.4 amps 230/460 Volts 60 Hz Three Phase Motor

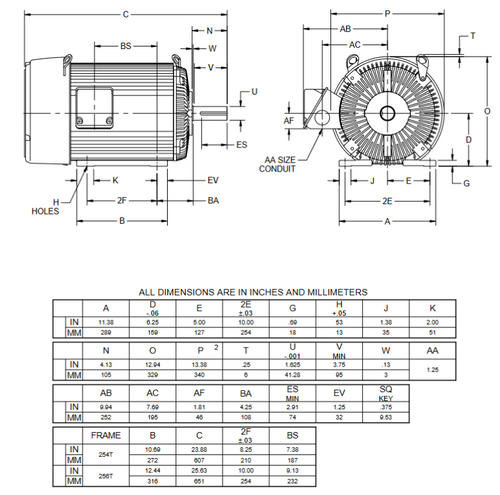

  • NEMA 254T Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HD43
