U1P2GFC Nidec 1 hp 1800 RPM 56C Frame 575V TEFC 3-Phase Electric Motor

SKU:
U1P2GFC
Weight:
30.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $359.00
Now: $320.10
Adding to cart… The item has been added
  • 1 hp 1800 RPM,  1.1 amps 575 Volts 60 Hz Three Phase Motor

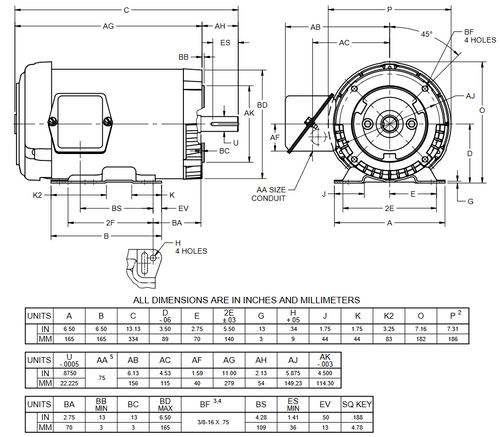

  • NEMA 56C frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FM71
