U20P1H Nidec 20 hp 3600 RPM 256T Frame 200V TEFC 3-Phase Electric Motor
U20P1H Nidec 20 hp 3600 RPM 256T Frame 200V TEFC 3-Phase Electric Motor
U20P1H Nidec 20 hp 3600 RPM 256T Frame 200V TEFC 3-Phase Electric Motor
U20P1H Nidec 20 hp 3600 RPM 256T Frame 200V TEFC 3-Phase Electric Motor

Nidec

U20P1H Nidec 20 hp 3600 RPM 256T Frame 200V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$2,164.30
$1,932.58
SKU U20P1H
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 256T
Enclosure TEFC
Hertz 60 Hz
Amperage 53 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 20 hp 3600 RPM, 53 amps 200 Volts 60 Hz Three Phase Motor

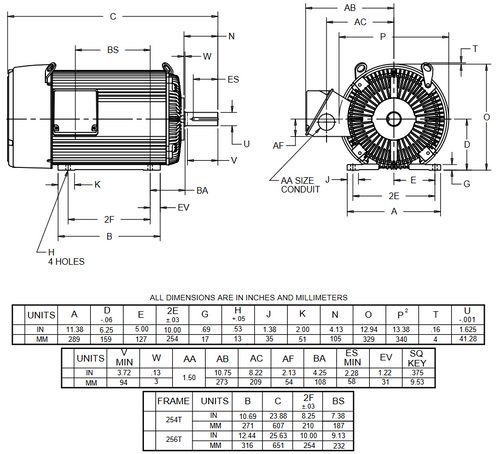

  • NEMA 256T frame Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DY72

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 256T
Enclosure TEFC
Hertz 60 Hz
Amperage 53 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
