U32P2D Nidec 1 1/2 hp 1800 RPM 143T Frame 208-230/460V TEFC 3-Phase Electric Motor
U32P2D Nidec 1 1/2 hp 1800 RPM 143T Frame 208-230/460V TEFC 3-Phase Electric Motor
U32P2D Nidec 1 1/2 hp 1800 RPM 143T Frame 208-230/460V TEFC 3-Phase Electric Motor
U32P2D Nidec 1 1/2 hp 1800 RPM 143T Frame 208-230/460V TEFC 3-Phase Electric Motor

Nidec

U32P2D Nidec 1 1/2 hp 1800 RPM 143T Frame 208-230/460V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$439.30
$392.38
SKU U32P2D
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 4.3/2.1 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Cross Reference U32P2B 2NKX8 T57027
Adding to cart… The item has been added
Description
  • 1 1/2 hp 1800 RPM, 4.5-4.3/2.1 amps  208-230/460 Volts 50/60 Hz Three Phase Motor

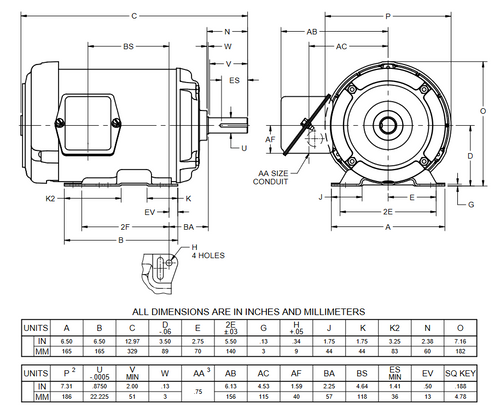

  • NEMA 143T frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FD22

Specifications
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 4.3/2.1 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Cross References

U32P2B 2NKX8 T57027

!
