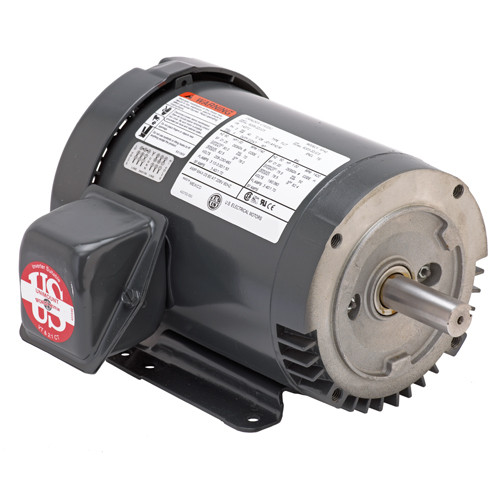

U32P2DFC Nidec 1 1/2 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

U32P2DFC Nidec 1 1/2 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec general-purpose electric motor delivers 1 1/2 horsepower at 1800 RPM and is designed for a wide range of industrial and HVAC applications requiring a reliable three-phase power source. It is a direct replacement for motors with similar NEMA 56C frame specifications and electrical ratings.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 4.5-4.3/2.1 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Bearings: Ball Bearings
• Rotation: Reversible

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes a wiring diagram on the nameplate for easy electrical connections. It is built with Class F insulation and a service factor of 1.25, suitable for demanding environments. This motor does not include overload protection and is designed for applications requiring a C-face mounting configuration.

Warranty

1 Year Manufacturer Warranty
