sale
Nidec
U32P2DFCR Nidec 1 1/2 hp 1800 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
U32P2DFCR Nidec 1 1/2 hp 1800 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
$399.05
$319.95
SKU
U32P2DFCR
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230/460V
Horsepower
1/2 HP
RPM
1800
Phase
Three Phase
Frame
56C
Enclosure
TEFC
Hertz
50/60 Hz
Amperage
4.3/2.1 Amps
Bearings
Ball Bearings
Service Factor
1.25
Insulation Class
Class F
Mounting
Rigid Base
U32P2DFCR Nidec 1 1/2 hp 1800 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
This Nidec 1 1/2 horsepower, 1800 RPM three-phase electric motor is designed for general-purpose industrial applications. It replaces standard three-phase motors requiring a NEMA 56C frame and offers reliable performance in various machinery setups.
Key Specifications
- Horsepower: 1 1/2 hp
- RPM: 1800
- Voltage: 208-230/460 V
- Amperage: 4.5-4.3/2.1 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 56C
- Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a keyed shaft and is reversible for versatile operation. It comes with a rigid base mount and Class F insulation for enhanced durability. The wiring diagram is conveniently located on the motor nameplate to assist with installation. Note that overload protection is not included.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 208/230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 50/60 Hz |
| Amperage | 4.3/2.1 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.25 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
Related Products
sale
Add to Cart
The item has been added
U12P2DCR Nidec 1/2 hp 1800 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
1/2 hp 1800 RPM, 1.8-1.8/0.9 amps 208-230/460 Volts 60/50 Hz Three Phase Motor
NEMA 56C frame Keyed Shaft 5/8" Diameter x 1 7/8"
Service Factor: 1.15, Overload protection = None
Rigid Base Mount,...
$354.20
$316.25
sale
Add to Cart
The item has been added
U1P2DFCR Nidec 1 hp 1800 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
U1P2DFCR Nidec 1 hp 1800 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
This Nidec 1 hp, 1800 RPM, three-phase electric motor is designed for general-purpose industrial applications...
$397.90
$355.58
sale
Add to Cart
The item has been added
U1P2DFC Nidec 1 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor
U1P2DFC Nidec 1 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor
This Nidec 1 horsepower, 1800 RPM three-phase electric motor is designed for general-purpose industrial applications...
$412.85
$368.12
sale
Add to Cart
The item has been added

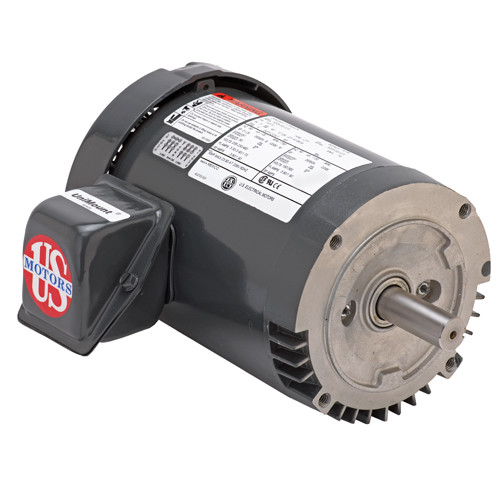

U12S2ACR Nidec 1/2 hp 1800 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
