U32P2HC Nidec 1 1/2 hp 1800 RPM 145TC Frame 200V TEFC 3-Phase Electric Motor

U32P2HC Nidec 1 1/2 hp 1800 RPM 145TC Frame 200V TEFC 3-Phase Electric Motor

This Nidec U32P2HC is a general-purpose, three-phase electric motor designed for a wide range of industrial applications. It serves as a reliable replacement for motors requiring a 1 1/2 horsepower, 1800 RPM, TEFC design with a NEMA 145TC frame.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 200V
• Amperage: 4.7 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

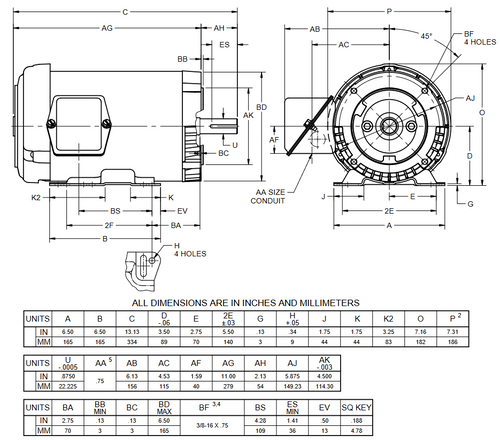

• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed
• Bearings: Ball Bearings
• Rotation: Reversible

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes Class F insulation for enhanced thermal protection. It is equipped with a keyed shaft and a wiring diagram located on the motor nameplate to facilitate proper electrical connections. The motor does not include overload protection and has a service factor of 1.25.

Warranty

1 Year Manufacturer Warranty
