U3P1DCR Nidec 3 hp 3600 RPM 182TC Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor

U3P1DCR Nidec 3 hp 3600 RPM 182TC Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor

This Nidec 3 horsepower, 3600 RPM three-phase electric motor is designed for general-purpose industrial applications requiring reliable performance. It replaces standard three-phase motors with a TEFC enclosure and a 182TC frame, suitable for various machinery and equipment.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 8.4-7.8/3.9 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

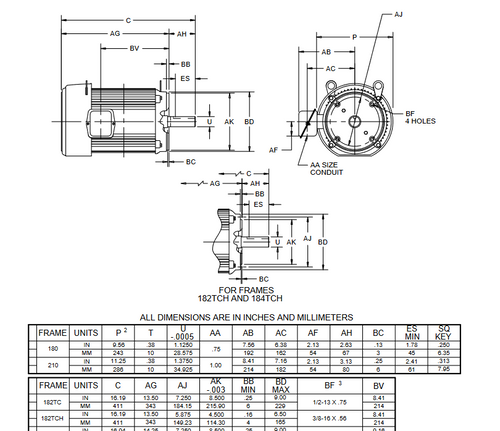

• Frame / Diameter: 182TC / NEMA 184TC
• Shaft Dimensions: 1 1/8" Diameter x 2 5/8" Length
• Bearings: Ball Bearings
• Rotation: Reversible

Product Features & Fitment

This motor features a keyed shaft and is designed without a base for flexible mounting options. It includes Class F insulation and a service factor of 1.25, though it does not have built-in overload protection. The wiring diagram is conveniently located on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
