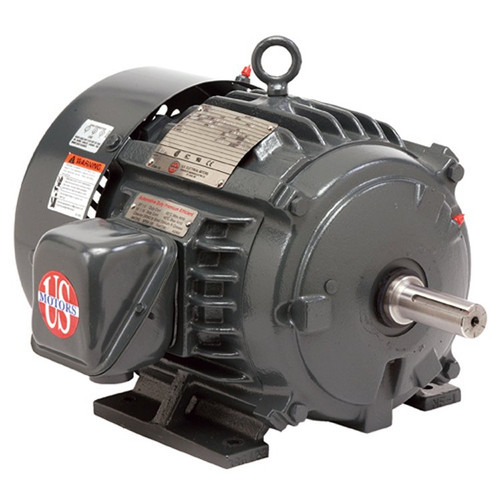

U5P3D Nidec 5 hp 1200 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor
U5P3D Nidec 5 hp 1200 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor
U5P3D Nidec 5 hp 1200 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor
U5P3D Nidec 5 hp 1200 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor

Nidec

U5P3D Nidec 5 hp 1200 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$1,343.20
$1,199.34
SKU U5P3D
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 5 HP
RPM 1200
Phase Three Phase
Frame 215T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 14.0/7.0 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 1200 RPM, 15.0-14.0/7.0 amps 208-230/460 Volts 50/60 Hz Three Phase Motor
  • NEMA 215T frame Keyed Shaft 1 3/8" Diameter x 3 1/2"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. A434

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 5 HP
RPM 1200
Phase Three Phase
Frame 215T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 14.0/7.0 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
