U7P1GC Nidec 7 1/2 hp 3600 RPM 213TC Frame 575V TEFC 3-Phase Electric Motor
U7P1GC Nidec 7 1/2 hp 3600 RPM 213TC Frame 575V TEFC 3-Phase Electric Motor
U7P1GC Nidec 7 1/2 hp 3600 RPM 213TC Frame 575V TEFC 3-Phase Electric Motor
U7P1GC Nidec 7 1/2 hp 3600 RPM 213TC Frame 575V TEFC 3-Phase Electric Motor

Nidec

U7P1GC Nidec 7 1/2 hp 3600 RPM 213TC Frame 575V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$1,183.35
$1,056.16
SKU U7P1GC
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 1/2 HP
RPM 3600
Phase Three Phase
Frame 213TC
Enclosure TEFC
Hertz 60 Hz
Amperage 7.5 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 7 1/2 hp 3600 RPM, 7.5 amps  575 Volts 60 Hz Three Phase Motor

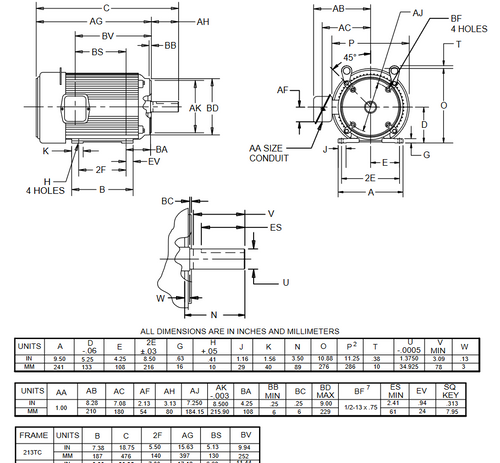

  • NEMA 213TC frame Keyed Shaft 1 1/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. CL05

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 1/2 HP
RPM 3600
Phase Three Phase
Frame 213TC
Enclosure TEFC
Hertz 60 Hz
Amperage 7.5 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
