U7P4D Nidec 7 1/2 hp 900 RPM 256T Frame 208-230/460V TEFC 3-Phase Electric Motor
U7P4D Nidec 7 1/2 hp 900 RPM 256T Frame 208-230/460V TEFC 3-Phase Electric Motor
U7P4D Nidec 7 1/2 hp 900 RPM 256T Frame 208-230/460V TEFC 3-Phase Electric Motor
U7P4D Nidec 7 1/2 hp 900 RPM 256T Frame 208-230/460V TEFC 3-Phase Electric Motor

Nidec

U7P4D Nidec 7 1/2 hp 900 RPM 256T Frame 208-230/460V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$2,681.80
$2,394.88
SKU U7P4D
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT

CURRENTLY OUT OF STOCK

Description
  • 7 1/2 hp 900 RPM, 23.7-23.3/11.2 amps 208-230/460 Volts 60 Hz Three Phase Motor

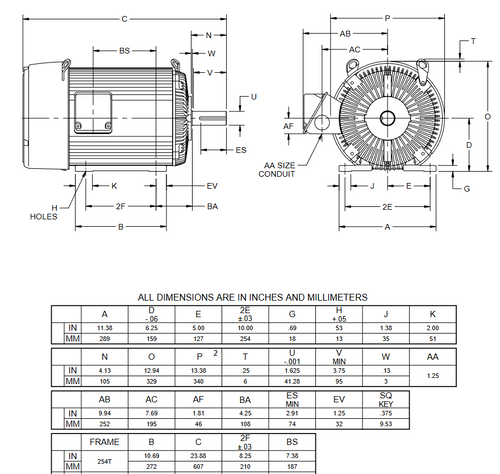

  • NEMA 256T frame Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FR06

Specifications
!
