UJ10P1DM US Motors 10 hp 3600 RPM 3-phase 215JM Frame 208-230/460V Close-Coupled Pump Motor

UJ10P1DM US Motors 10 hp 3600 RPM 3-phase 215JM Frame 208-230/460V Close-Coupled Pump Motor

This US Motors close-coupled pump motor delivers 10 horsepower at 3600 RPM, designed for reliable performance in industrial pumping applications. It is engineered to replace standard 3-phase motors with a 215JM frame and supports 208-230/460V operation.

Key Specifications

• Horsepower: 10 HP
• RPM: 3600
• Voltage: 208-230/460V
• Amperage: 26.5-23.9/12.0 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

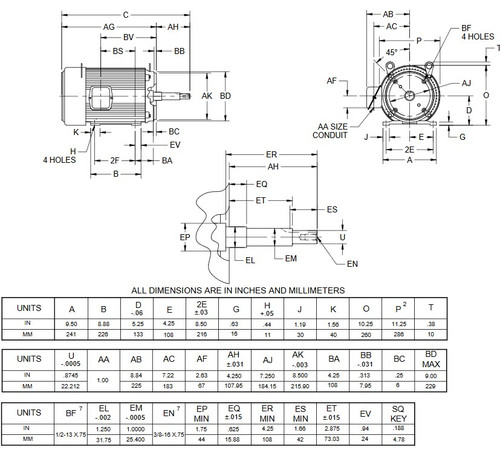

• Frame / Diameter: NEMA 215JM Cast Aluminum Frame
• Shaft Dimensions: JM stainless steel shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a close-coupled design, where the pump impeller mounts directly on the motor shaft, simplifying installation and reducing alignment issues. It includes a removable base for flexible mounting options and is equipped with an auto overload thermal protection system and Class F insulation for enhanced durability in demanding environments.

Warranty

1 Year Manufacturer Warranty
