UJ7P1DFM US Motors 7 1/2 hp 3600 RPM 3-phase 184JM Frame 208-230/460V Close-Coupled Pump Motor

UJ7P1DFM US Motors 7 1/2 hp 3600 RPM 3-phase 184JM Frame 208-230/460V Close-Coupled Pump Motor

This US Motors close-coupled pump motor delivers reliable 7.5 HP performance at 3600 RPM for industrial pump applications. Designed to replace standard 3-phase motors, it is ideal for direct pump impeller mounting, ensuring efficient power transmission and compact installation.

Key Specifications

• Horsepower: 7 1/2 HP
• RPM: 3600
• Voltage: 208-230/460V
• Amperage: 22.7-21.3/10.7 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

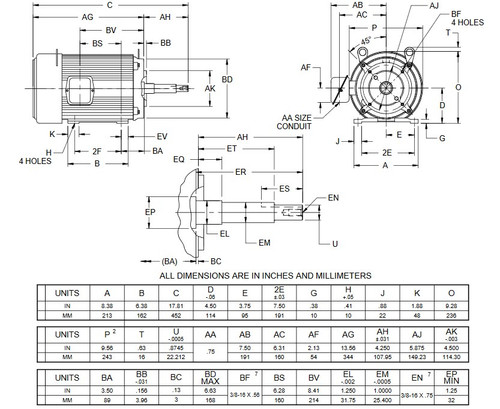

• Frame / Diameter: NEMA 184JM Cast Aluminum Frame
• Shaft Dimensions: JM stainless steel shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a removable base for flexible mounting options and is designed with a 1.15 service factor and Class F insulation for enhanced durability. The close-coupled design allows the pump impeller to be mounted directly on the motor shaft, simplifying installation and reducing alignment issues. It includes auto overload thermal protection to safeguard against overheating during operation.

Warranty

1 Year Manufacturer Warranty
