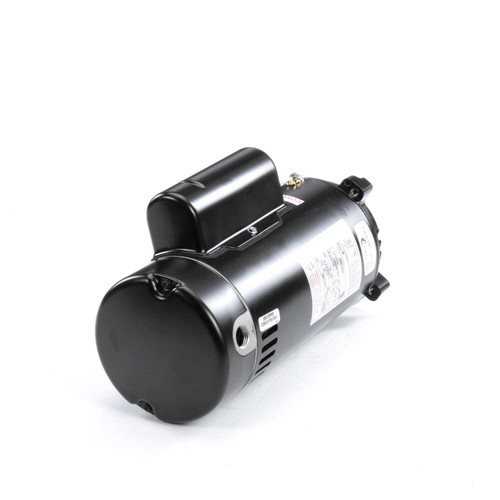

UST1202 Century 2 HP 3450 RPM 56J 115/230V Swimming Pool Pump Motor

UST1202 Century 2 HP 3450 RPM 56J 115/230V Swimming Pool Pump Motor

This Century 2 HP motor is designed for swimming pool pump applications, commonly replacing motors on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II models. It features a 56J frame and is suitable for pumps requiring a standard 1081 pump duty motor.

Key Specifications

• Horsepower: 2 HP
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 19.6/9.8 amps
• Frame / Diameter: 56-J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor includes automatic overload protection with a service factor of 1.10 and is non-reversible. It features a C-face mount with a round body and no base. The motor has four threaded bolt holes on the face for pump mounting, spaced 5 7/8" on center across the shaft. Wiring diagrams are provided on the motor nameplate for easy installation. Note that shipping restrictions apply in certain states due to energy efficiency regulations; variable speed motors are recommended for compliance.
