WD12AA2PZ7 Nidec 1/2 hp 1800 RPM 56YZ White (Yoke Mount) 115/230V TEAO 1-Phase Washdown Fan Motor
WD12AA2PZ7 Nidec 1/2 hp 1800 RPM 56YZ White (Yoke Mount) 115/230V TEAO 1-Phase Washdown Fan Motor
WD12AA2PZ7 Nidec 1/2 hp 1800 RPM 56YZ White (Yoke Mount) 115/230V TEAO 1-Phase Washdown Fan Motor
WD12AA2PZ7 Nidec 1/2 hp 1800 RPM 56YZ White (Yoke Mount) 115/230V TEAO 1-Phase Washdown Fan Motor

Nidec

WD12AA2PZ7 Nidec 1/2 hp 1800 RPM 56YZ White (Yoke Mount) 115/230V TEAO 1-Phase Washdown Fan Motor

(No reviews) Write a Review
$401.35
$358.46
SKU WD12AA2PZ7
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Enclosure TEAO
Hertz 60 Hz
Amperage 5.9/2.9 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 5.9/2.9 amps  115/230 Volts 60 Hz Permanent Split Capacitor (PSC) Single Phase Motor

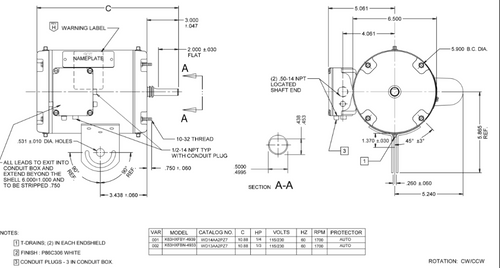

  • NEMA 56YZ Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0 Overload protection = Auto
  • Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

White epoxy coated wash-down fan motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEAO = Totally Enclosed Air-Over. K063FEF4987015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Enclosure TEAO
Hertz 60 Hz
Amperage 5.9/2.9 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
!
