WD13AA2PZ7 Nidec 1/3 hp 1800 RPM 56YZ White (Yoke Mount) 115/230V TEAO 1-Phase Washdown Fan Motor

WD13AA2PZ7 Nidec 1/3 hp 1800 RPM 56YZ White (Yoke Mount) 115/230V TEAO 1-Phase Washdown Fan Motor

This Nidec 1/3 hp washdown fan motor is designed for food and pharmaceutical applications requiring a durable, corrosion-resistant solution. It replaces standard fan motors with a white epoxy-coated, totally enclosed air-over (TEAO) design to ensure reliable operation in washdown environments.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/230 V, 60 Hz
• Amperage: 4.9/2.5 A
• Enclosure: Totally Enclosed Air-Over (TEAO)

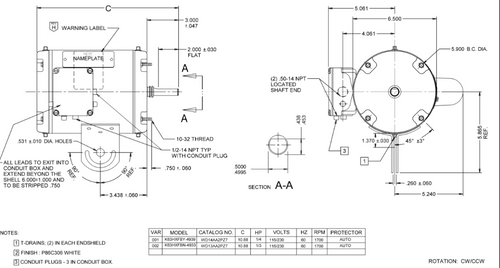

• Frame / Diameter: NEMA 56YZ Rolled Steel Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, Keyed
• Bearings: Ball Bearings
• Rotation: Reversible

Product Features & Fitment

The motor features a permanent split capacitor (PSC) single-phase design with a service factor of 1.0 and automatic overload protection. It mounts via a yoke (56YZ frame) and includes a wiring diagram on the motor nameplate for easy installation. The white epoxy coating provides enhanced corrosion resistance suitable for washdown conditions.

Warranty

1 Year Manufacturer Warranty
