WD1P1AC Nidec 1 hp 3600 RPM 56C Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor
WD1P1AC Nidec 1 hp 3600 RPM 56C Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor
WD1P1AC Nidec 1 hp 3600 RPM 56C Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor
WD1P1AC Nidec 1 hp 3600 RPM 56C Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor

Nidec

WD1P1AC Nidec 1 hp 3600 RPM 56C Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor

(No reviews) Write a Review
$579.60
$517.96
SKU WD1P1AC
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure TENV
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 3600 RPM, 3.4-3.2/1.6 amps  208-230/460 Volts 60 Hz Three Phase Motor
  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

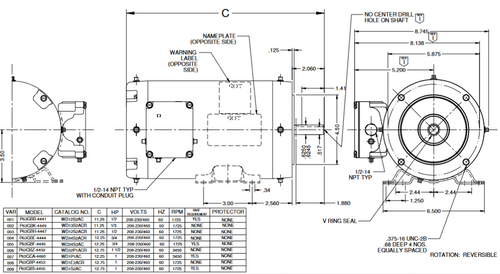

Easy cleaning painted wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. P063GCA4460015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure TENV
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
