WD7P1AFC Nidec 7 1/2 hp 3600 RPM 184TC Frame (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor

WD7P1AFC Nidec 7 1/2 hp 3600 RPM 184TC Frame (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor

This Nidec WD7P1AFC motor is a 7 1/2 horsepower, 3600 RPM, three-phase washdown motor designed for demanding food and pharmaceutical applications. It replaces standard motors requiring a rugged, easy-to-clean solution with a totally enclosed fan-cooled (TEFC) design to withstand washdown environments.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 19.4-17.3/8.7 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)

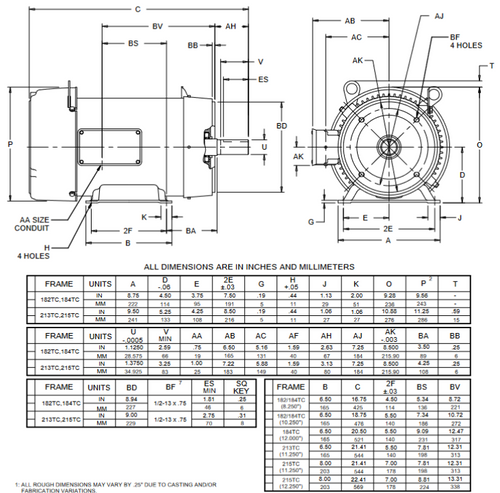

• Frame / Diameter: NEMA 184TC Rolled Steel Frame
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a keyed shaft and a rigid base for secure mounting, with a C-face mount option for flexible installation. It includes Class F insulation and is designed without overload protection. Wiring diagrams are provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
