WD2P3DC Nidec 2 hp 1200 RPM 184TC Frame (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor

SKU:
WD2P3DC
Weight:
80.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,368.00
Now: $1,221.50
Adding to cart… The item has been added
  • 2 hp 1200 RPM, 6.4-6.2/3.1 amps  208-230/460 Volts 60 Hz Three Phase Motor

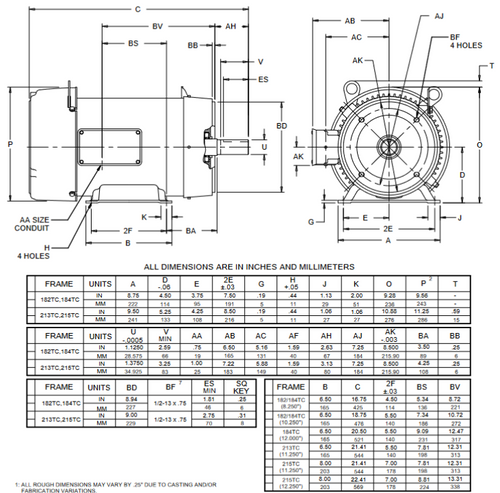

  • NEMA 184TC Rolled Steel Frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Easy cleaning painted wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. DX42
